API Docs

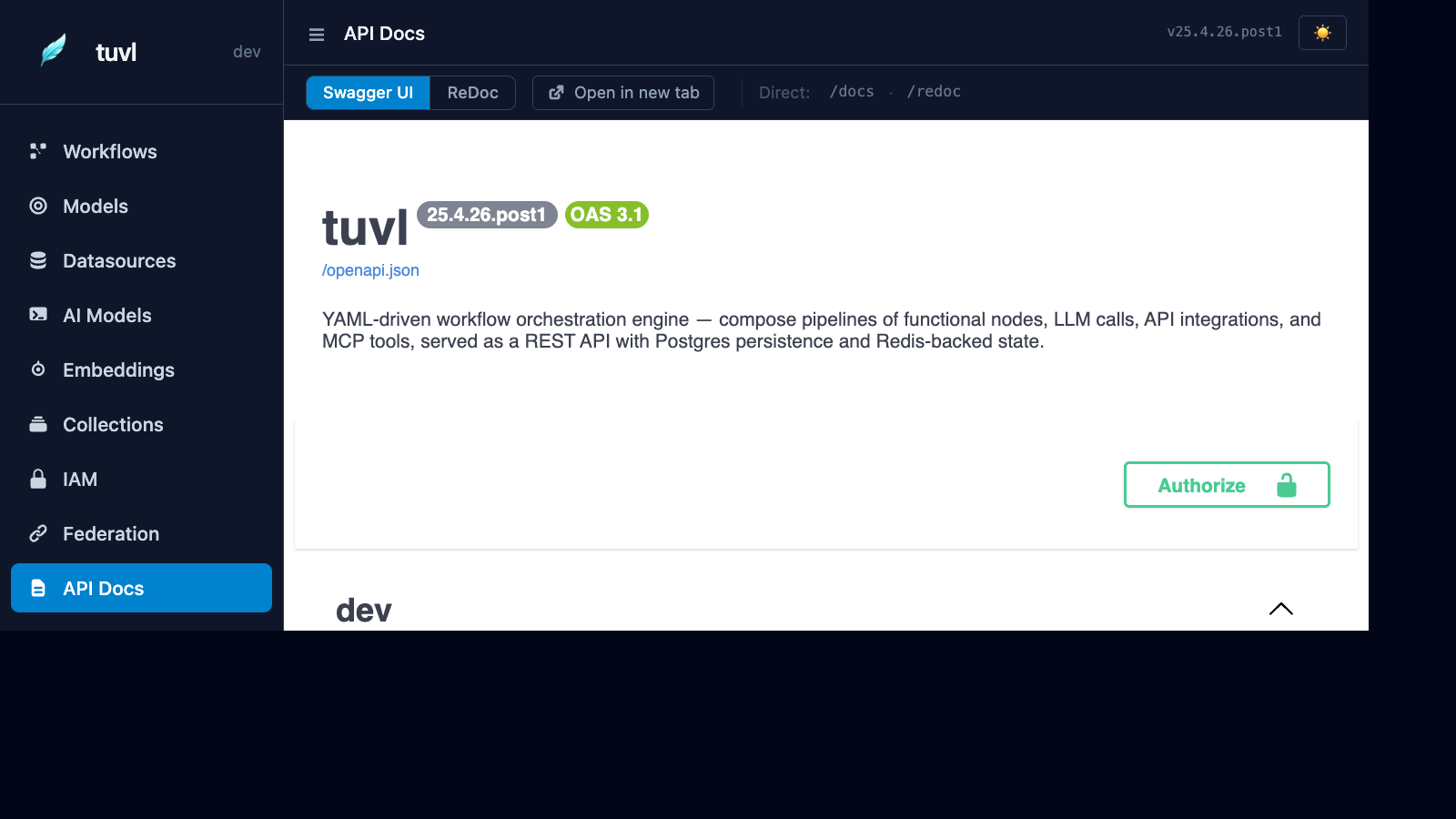

The API Docs section embeds a live Swagger UI for your project's REST endpoints. Every auto-generated CRUD route, workflow execution endpoint, and auth route is visible and callable directly from the browser.

---

What you'll find here

The Swagger UI at /insight/api-docs proxies the OpenAPI schema from /docs and renders it in the portal's theme. It includes:

Category	Routes
Auth	/auth/token, /auth/bootstrap, /auth/admin/*, /auth/callback/*
System	/health, /registry, /
Workflow execution	/api/workflows/{name}/run, /api/workflows/{name}/stream
HITL	/hitl/tasks, /hitl/tasks/{id}/respond
Model CRUD	/api/{table}/ — auto-generated for each enabled ModelDefinition
Vector collections	/api/collections/{name}/index, /api/collections/{name}/search

---

Trying endpoints

1. Click the Authorize button (🔒) at the top of the Swagger UI.
2. Enter your access token in the Bearer field.
3. Expand any endpoint, click Try it out, fill in the parameters, and click Execute.

In dev mode, you can use the dev API key directly as a bearer token.

---

Running a workflow via the API

POST /api/workflows/screen_candidate/run
Authorization: Bearer <token>
Content-Type: application/json

{
  "full_name": "Jane Smith",
  "email": "jane@example.com",
  "experience_years": 7,
  "skills": ["Python", "FastAPI"]
}

Response:

{
  "workflow": "screen_candidate",
  "status": "completed",
  "output": {
    "route": "strong",
    "score": 8,
    "summary": "Strong candidate with 7 years experience and relevant skills.",
    "id": "550e8400-e29b-41d4-a716-446655440000"
  }
}

---

Streaming execution

For long-running workflows, use the SSE stream endpoint:

GET /api/workflows/screen_candidate/stream?full_name=Jane+Smith&email=jane%40example.com
Authorization: Bearer <token>
Accept: text/event-stream

Each step emits an event:

event: step
data: {"step": "save_draft", "status": "completed", "duration_ms": 12.4}

event: step
data: {"step": "score_cv", "status": "completed", "duration_ms": 843.1}

event: done
data: {"route": "strong", "score": 8}

---

Raw OpenAPI schema

The raw JSON schema is available at /openapi.json. Import it into Postman, Insomnia, or any API tool that accepts OpenAPI 3.x.
